用途：

用于织造服装、毛绒玩具、家纺及装饰布等织物。

Application：

This machine is for producing high quality garments,plush toy andornamental cloth etc.

特点：

油浸式凸轮连杆机构，地梳固定不摆动，带耳沉降片穿防闭钢丝，送经箱体分别控制二辊罗拉积极送经。绒高3-25mm。

Characteristics：

Oil--soaking connecting wheel system witch is fixed so as easily to subside wire piece control two rolls partly.The plush high is 3-25mm.

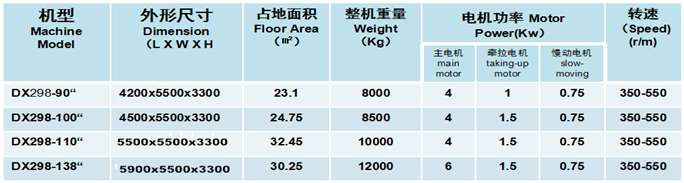

主要技术参数：

Main technical specification;

针型：舌针

Working needle:latch needle

机号：E16，E18，E22，E24

Gauge:E16，E18，E22，E24

梳栉数：5把（把其中4把地梳1把毛梳）

Number of guide bars:5 guide bar(4ground bars,1terry bar)

脱圈板间距：6~50mm

Knock--over coml.Bar distance:6--50mm

工作门幅：90” 100"136"

Working widths:90” 100"136"
