Application：

Working widths: 105″ 136″

用途：

主要用来编织三明治网布和三层间隔织物，适用于鞋材，衬垫，内衬，坐垫等

Application：

This machinemainly weave air mesh and sandwich fabric, three-ply spacer fabric,  used in shoes, backing strap, lining cushion,and so on.

特点：

油浸凸轮偏心连杆机构，成圈部分采用四连杆机构，短动程舌针，六轴电子送经

Characteristics:

Adopt oil immersed cam and eccentric linkage bar system,  looping part adopt four-bar mechanism;short stoke latch needles, EBA let-off.

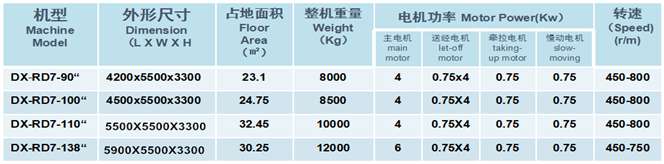

主要技术参数：

Main Technical Specifications:

针型：舌针

Working needle: latch needle

机号：E16，E18，E22，E24，E26，E28

Gauge: E16, E18, E22, E24，E26，E28

梳栉数：5把，6把，7把

Number of guide bars: 5 bars  6bars 7bars

脱圈板间距：3-12mm

Knock-over coml. Bar distance: 3-12mm

工作门幅：90″ 100″110″138″

Working widths: 90″ 100″110″138″
