用途：用于织造服装、毛绒玩具、家纺及装饰等织物。

Application: Used to produce apparel fabric,plush toy,home textile,decoration cloth and other fabrics.

特点：油浸式凸轮连杆机构,便易式沉降机构，自动调节脱圈板隔距，采用同步带传动，电子送经，电子牵拉，毛高5-75mm。

Characteristics: Oil-soaking cam and connecting bar system;userfriendly sinker system;distance between the trick plate can be adjusted automatically;synchronous belt for transmission;adopt electronic let-off device and electronic tensioning decice;pile-height is 5-75mm.

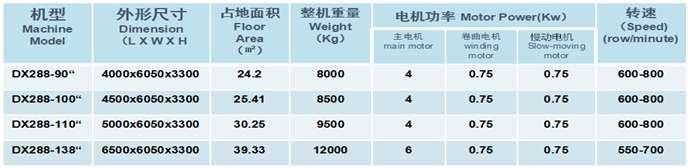

主要技术参数：

Main technical specification:

针型：舌针

Working needle: latch needle

机号：E16，E18，E22，E24

Gauge: E16, E18, E22, E24

梳栉数：5把

Number of guide bars: 5

脱圈板间距：10~150mm

Knock-over coml. Bar distance: 10~150mm

工作门幅：90″  100″  136″

Working widths: 90″ 100″  136″
