Application:
Working widths: 105″ 136″
用途:
本机是双针床拉舌尔型经编机,适合于各类化纤、人造丝及部分天然原料,毛纱常用原料(涤纶、晴纶及包覆丝),主要用于服装面料、玩具绒、席梦思面料、毛毯及装饰面料等方面的织造。
Application:
Using various of fibers, artificial silks and parts of natural material(polyester、Acrylic fibers and covered yarns),This machine can be used to make clothes material, toy plush, Mattress-cover, blanket, etc.
特点:
DX-HRD6型经编机成圈系统采用了优化设计的曲轴连杆驱动,运动较曲柄偏心连杆更平稳可靠,且织造效率高、噪音小。
Characteristics:
The knitting elements of DX-HDR6 type of Warp Knitting Machine driven by crankshaft linkage levers which designed with latest computer technology to optimize, feature more reliable running higher productivity and lower noise.

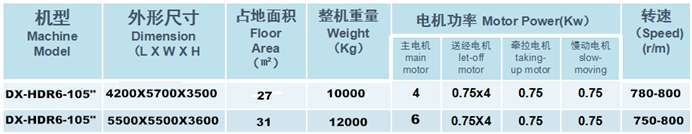

主要技术参数:
Main Technical Specifications:
针型:舌针
Working needle: latch needle
机号:E16,E18,E22,E24
Gauge: E16, E18, E22, E24
梳栉数:5把(其中4把地梳1把毛梳)
Number of guide bars: 5 guide bars (4 ground bars, 1 terry bar)
脱圈板间距:10~60mm
Knock-over coml. Bar distance: 10~60mm
工作门幅:105″ 136″
Working widths: 105″ 136″
|
